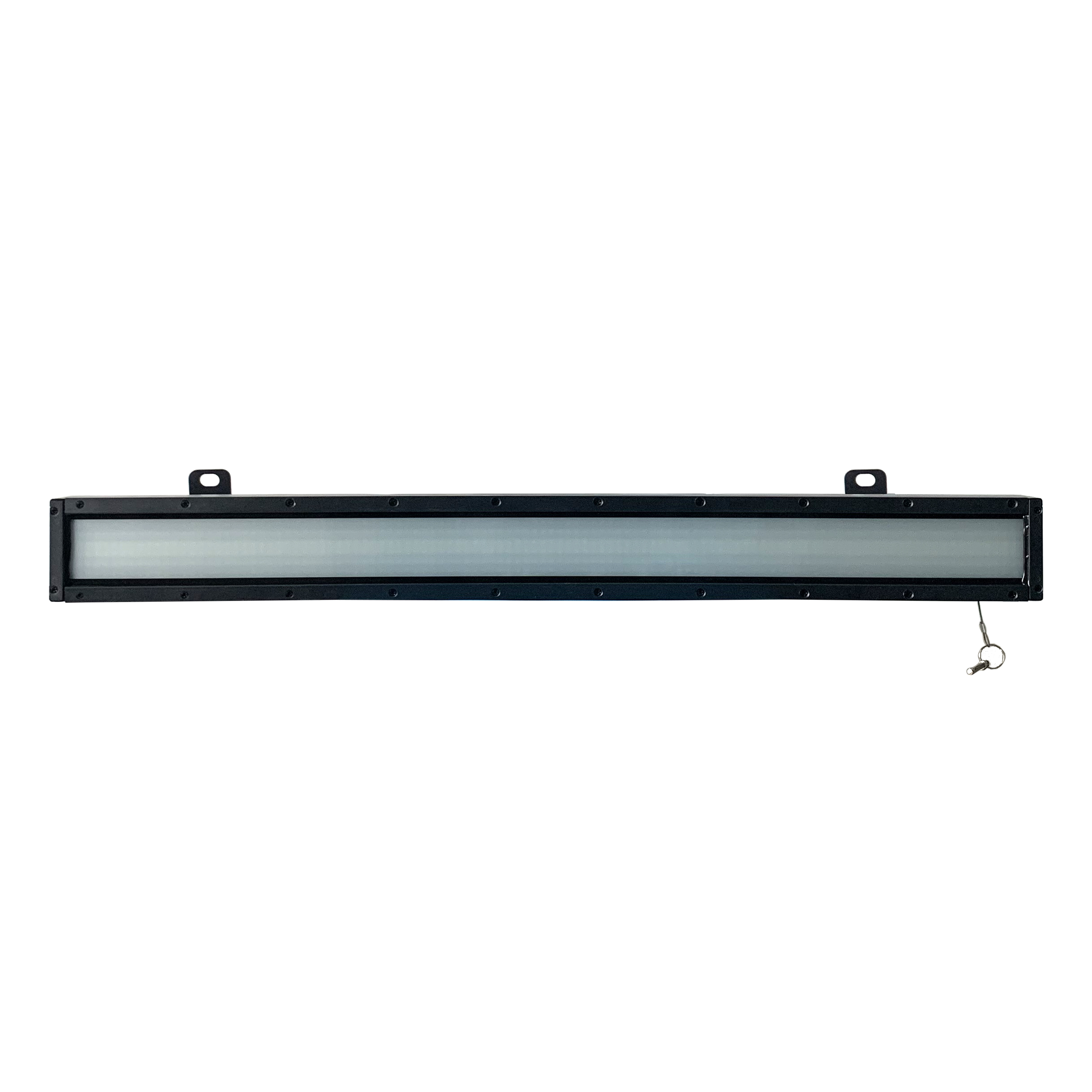

GK Lighting Pixel Line Frost IP65 -Modular Waterproof Strobe, Wash & Beam Bar with Frost

Product Details:

Multi-Effect Design for Maximum Versatility

• 4-in-1 Functionality: Use as a beam light, wash light, strobe light, or soft frost effect.
• Frost Effect: Built-in diffusion system softens beams for a smooth wash effect.
• Modular & Seamless Linking: Designed for multiple units to be connected, creating a continuous lighting effect.

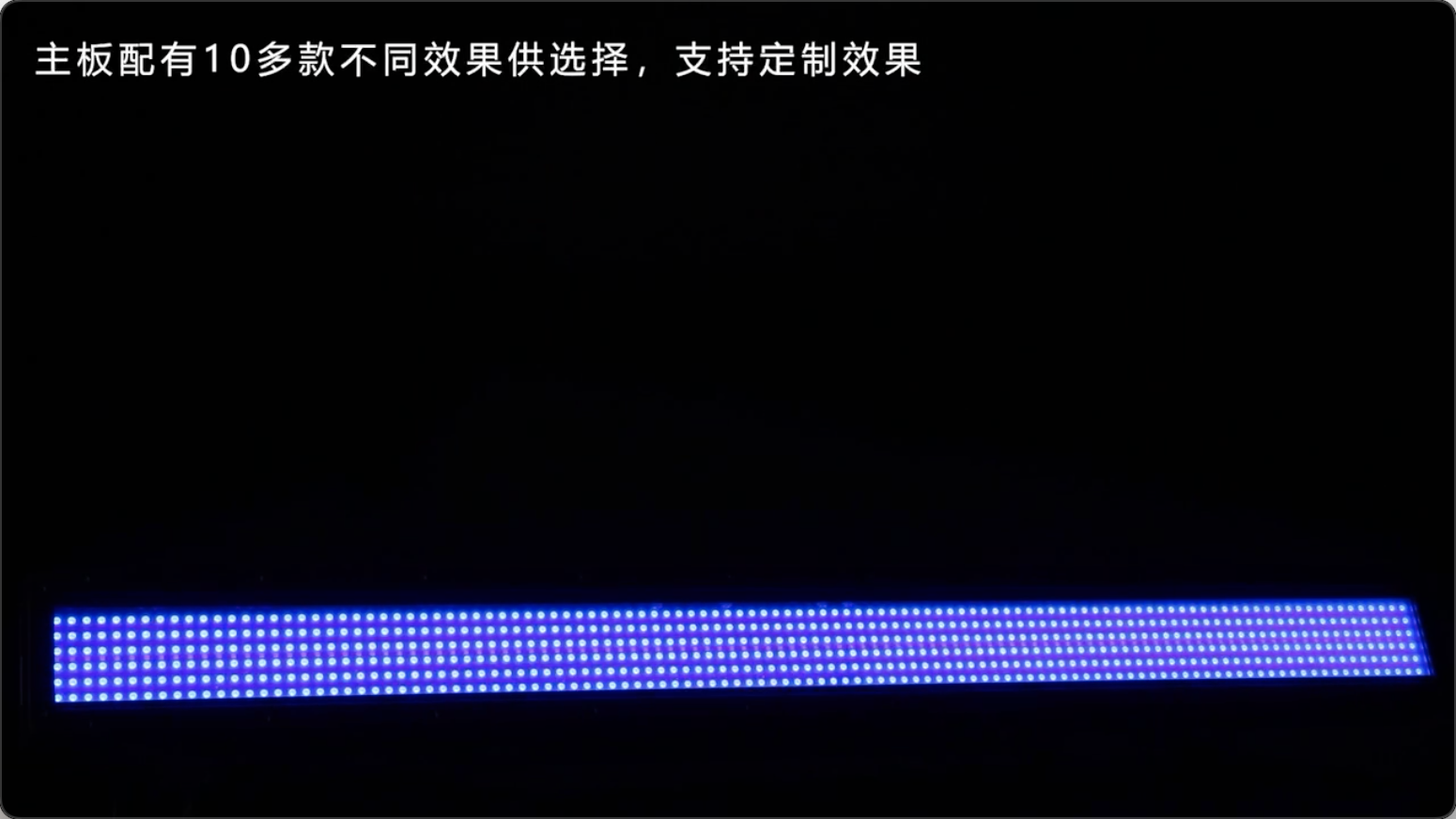

• Pixel-Mapping Capability: 12 independent control zones allow for stunning chase and gradient effects.

High-Performance LED System

• Beam Section: 10 x 60W RGBW LED engine for sharp, high-output beams.
• Wash/Strobe Section:
  • 96 x 3W CW LEDs for intense white strobe.
  • 96 x 3W WW LEDs for warm white strobe.
  • 96 x 0.5W RGB LEDs for multi-color strobe and wash effects.
• Full RGBW Color Mixing with smooth dimming and transitions.

Flexible Optical Adjustments

• Beam Angle: 2.8° - 31° (Beam section)
• Wash Angle: 5° - 46° (Beam section with frost)
• Color Temperature: 6300K pure white
• LED Lifespan: 20,000 hours

Advanced Control & Connectivity

• Control Protocols: DMX512, RDM, Art-Net, sACN
• DMX Channel Modes: 7 modes (17/27/99/108/168/8+100/8+160/170 channels)
• LCD Display with Touch Controls for intuitive operation
• DMX Software Updates via built-in DMX port

IP65 Waterproof & Road-Ready Design

• IP65-Rated Housing: Perfect for outdoor stages, concerts, and festivals.
• Durable & Robust Build with secure vertical locking system.
• Power Input: 180-240V~ 50/60Hz, Total Power Consumption: 1155W
• Connectivity Options:
  • Power input/output via power connectors
  • Signal input/output via 3-pin/5-pin XLR & RJ45

Compact, Stackable & Linkable Design

• Fixture Dimensions:
  • Length: 1,000mm (39.4")
  • Width: 290mm (11.4")

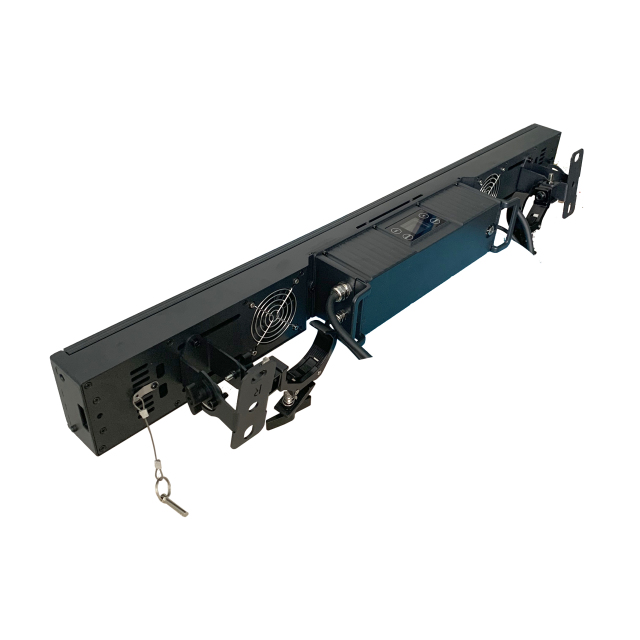

• Designed for Seamless Rigging & Installation

Perfect for Large-Scale Events & Creative Lighting Designs

The Pixel Line Frost IP65 is engineered for professional lighting designers who need a powerful, adaptable fixture. Whether used individually or in a seamless row, it delivers high-impact visuals, immersive effects, and precise color control for any show or production.
